Digital measurement tools

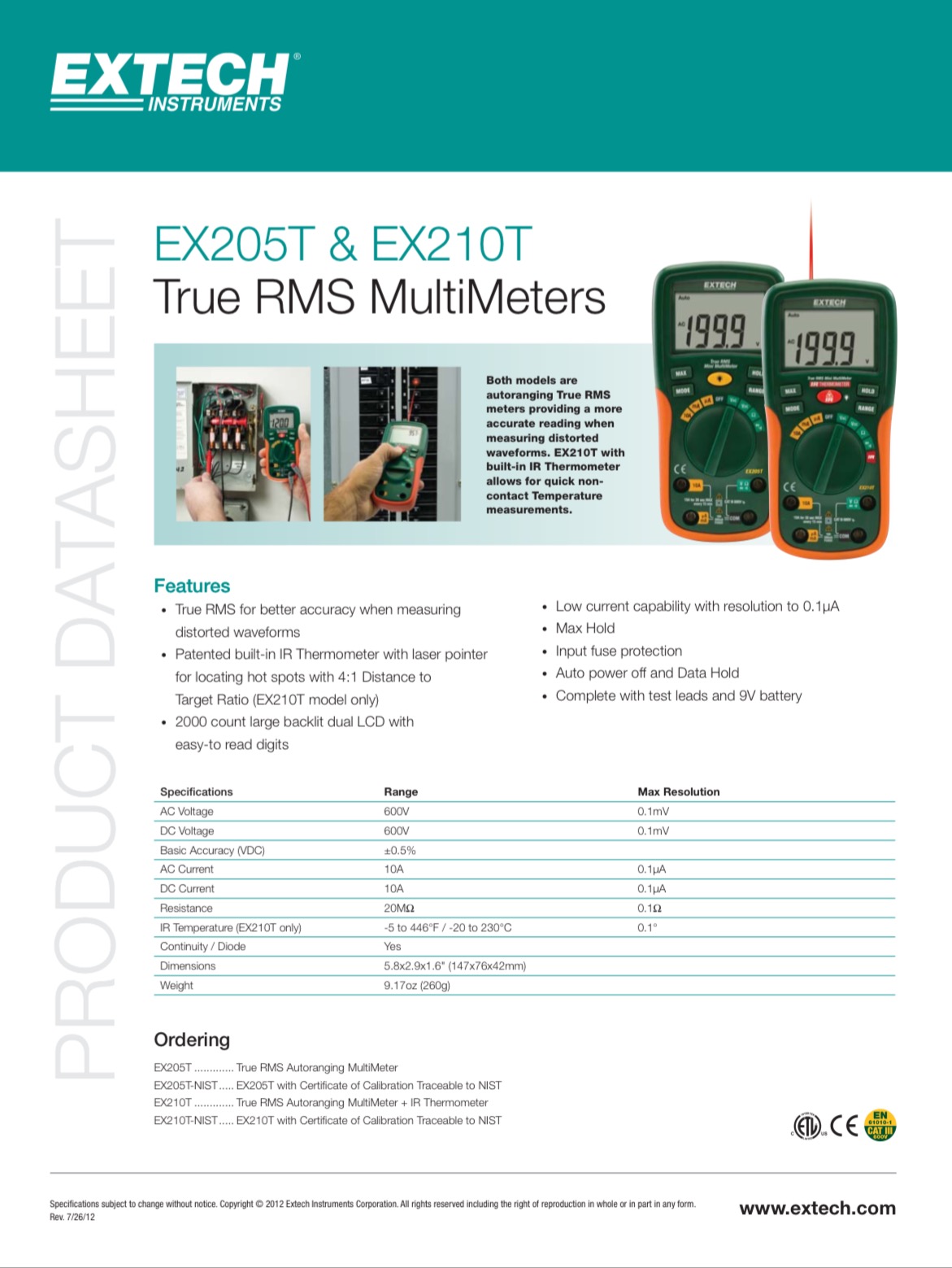

MULTIMETER.

FEATURES:

• True RMS for better accuracy when measuring distorted waveforms
• Built-in IR Thermometer with 4:1 distance to target ratio and laser pointer
• 2000 count large backlit dual LCD with easy-to read digits
• Low current capability with resolution to 0.1µA
• Input fuse protection
• Max Hold, Data Hold and Auto power off
• Complete with test leads and 9V battery

                 FLUKE INFRARED THERMOMETER FLUKE59MAX

Power: 1 AA IEC LR06 Battery
Battery Life: 12 hours with laser and backlight on
Weight: 220 g (7.76 oz)
Size: (156 x 80 x 50) mm

-Fluke has built the 59 MAX Infrared Thermometer with the precision you need to do your job accurately and within your budget. Designed to withstand a 1 meter drop, you can count on this lightweight, compact infrared thermometer to work when you need it.

FEATURES

-Precise laser technology for more accurate and repeatable measurements

-Large, easy-to-read backlit LCD display for easy viewing

-Small and lightweight design fits easily fits into your tool box

-8:1 distance to spot ratio

-IP40 rated for extra protection

-Displays the minimum, maximum or average temperature, or the difference between two measurements

-Hi and Lo alarms for rapid display of measurements outside the limits

-Powered by one (1) AA battery

INFRARED THERMOMETER.

572-2 Infrared Thermometer The best choice when things are really hot

The Fluke 572-2 Infrared Thermometer is the one product you can use in high-temperature industrial environments all around the world. Whether you work in power utility, metal refining and smelting, glass, cement or petrochemical environments, the new 572-2 allows you to carry the most trusted name in test tools anywhere you need accurate, hightemperature and high distance-to-spot measurements. With a straight-forward user interface and soft-key menus, the Fluke 572-2 makes even complex measurements easy. Quickly navigate and adjust emissivity, start data logging, or turn on and off alarms, with just a few pushes of a button.

Product highlights With a rugged, easy-to-use, ergonomic design, the Fluke 575-2 can stand up to tough industrial, electrical, and mechanical environments. • Measure -30 °C to 900 °C (-22 °F to 1652 °F) • 60:1 distance to spot ratio with dual laser sighting for fast, accurate targeting • Multi-language interface (user select) • Current Temperature plus MAX, MIN, DIF, AVG temperature displays • Compatible with standard mini-connector K-type thermocouples, including ones you already own and have installed. • Adjustable emissivity and predefined emissivity table • Infrared and thermocouple temperature on backlit display • Last reading Hold (20 seconds) • High and low temperature alarm • Data storage and review (99 data sets) • Tripod mount • 12 or 24 hour clock • USB 2.0 computer interface cable • FlukeView® Forms Documenting Software • Two-year warranty.

572-2 specifications Infrared measurements

Infrared temperature range -30 °C to 900 °C (-22 °F to 1652 °F)

IR accuracy (Calibration geometry with ambient temperature 23 °C ± 2 °C) ≥ 0 °C: ± 1°C or ± 1 % of the reading, whichever is greater ≥-10 °C to <0 °C: ± 2 °C <-10 °C: ± 3 °C ≥32 °F: ± 2 °F or ± 1 % of the reading, whichever is greater ≥14 °F to <32 °F: ± 4 °F <14 °F: ± 6 °F

 IR Repeatability ± 0.5 % of reading or ± 0.5 °C (± 1 °F), whichever is greater

Display Resolution 0.1 °C / 0.1 °F

 Distance:Spot 60:1 (calculated at 90 % energy)

Minimum spot size 19 mm

Laser sighting Offset dual laser, output <1 mW

 Spectral Response 8 μm to 14 μm

Response Time (95 %) <500 ms

Emissivity Digitally adjustable from 0.10 to 1.00 by 0.01 or via built-in table of common materials Measurement options Hi/Low alarms Audible and two-color visual

Min/Max/Avg/Dif Yes

Switchable celsius and fahrenheit Yes

Backlight Two levels, normal and extra bright for darker environments

Probe input K-type thermocouple Simultaneous display of probe and IR temperature

Trigger lock Yes

 Data storage 99 points

Display Dot matrix 98 x 96 pixels with function menus

Communication USB 2.0 K-

type thermocouple specifications

K-type thermocouple input temperature range -270 °C to 1372 °C (-454 °F to 2501 °F)

K-type thermocouple input accuracy (with ambient temperature 23 °C ± 2 °C) < -40 °C: ± (1 °C + 0.2 °/1 °C) ≥ -40 °C: ± 1 % or 1 °C,

 whichever is greater < -40 °F: ± (2 °F + 0.2 °/1 °F) ≥ -40 °F: ± 1 % or 2 °F,

whichever is greater K-type thermocouple resolution 0.1 °C/0.1 °F

K-type thermocouple repeatability ± 0.5 % of reading or ± 0.5 °C (± 1 °F),

 whichever is greater Measurement range

(K-type thermocouple bead probe) -40 °C to 260 °C (-40 °F to 500 °F)

Accuracy ± 1.1 °C (± 2.0 °F) from 0 °C to 260 °C (32 °F to 500 °F).

 Typically within 1.1 °C (2.0 °F) from -40 °C to 0 °C (-40 °F to 32 °F)

Cable length 1 m (40 in)

 K-type thermocouple cable with standard miniature thermocouple connector and bead termination General specifications Operating temperature 0 °C to 50 °C (32 °F to 122 °F)

Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)

Relative humidity 10 % to 90 % RH non-condensing up to 30 °C (86 °F)

Operating altitude 2000 meters above mean sea level

 Weight 0.322 kg (0.7099 lb)

 Power 2 AA Batteries

Battery life 8 hours with laser and backlight on; 100 hours with laser and backlight off, at 100 % duty cycle (thermometer continuously on)

Safety and compliance          -IEC 60825-1

                                                        -FDA Laser Class II

                                                 -EMC 61326-1

                                                  -CE Compliance

                                                          -CMC 沪制01120009

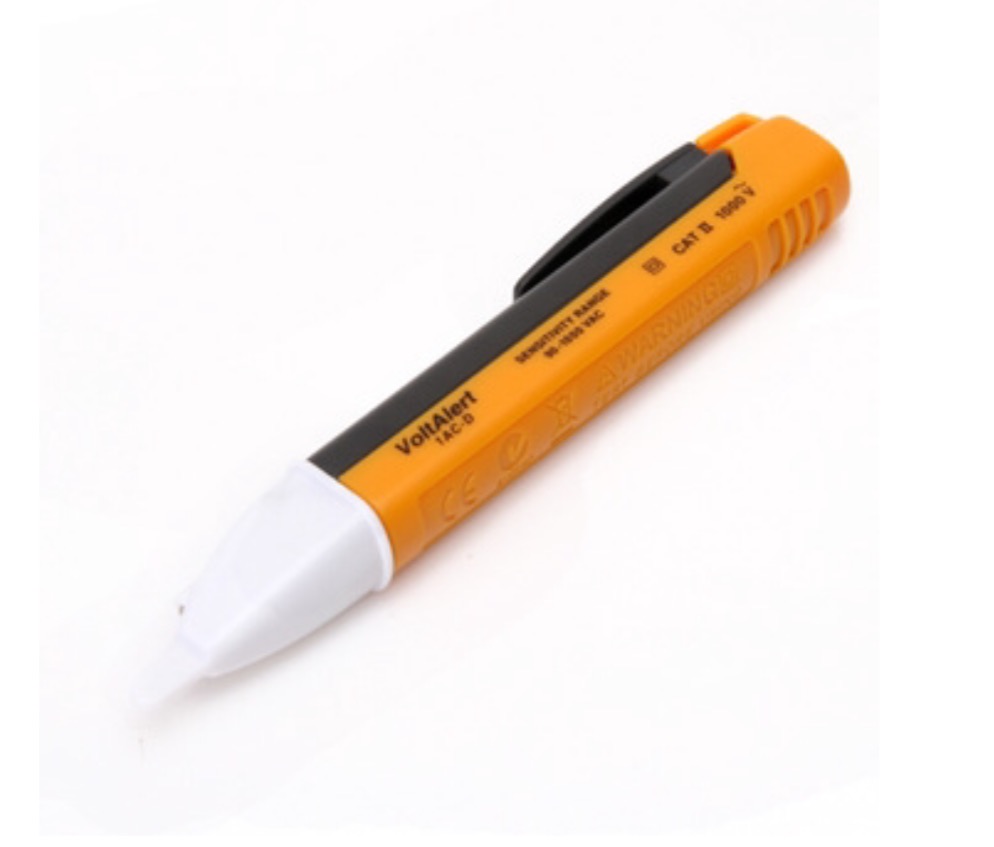

90~1000V AC Non-Contact Electric Voltage Power Detector Sensor Tester Pen New

Size (L x W x H)	18.00 x 9.00 x 9.00
Weight	0.04

• Brand New,High Quality
• Detects AC voltage without metallic contact
• With alarm prompt sound and LED flashlight
• Entire outer surface are non-conductive for safety
• Quickly locates the hot, neutral and ground terminals in any receptacle
• Powered by 2 x 1.5V AAA batteries (Not Included)

Product details of 90~1000V AC Non-Contact Electric Voltage Power Detector Sensor Tester Pen New

90-1000V AC Electric Voltage Detector Sensor Electrical Tester Pen

100% BRAND NEW, non-Contact Detection, safe and easy-to-use
The voltage detector designed for electrical testing
Small and compact pen design for easy carrying

Specification :
Voltage Sensitivity: 90~1000V AC (never test the voltage which is more than 1000AC)
Operating Temperature : -10°C ~ 50°C
Storage temperature: -10°C - 50°C
Operating Humidity : 80%25
Size: 15.3 x 2.5 x 1.5 cm
Power by: 2 x 1.5V AAA batteries ( Not included )

Cleaning: clean with damp cloth
This instrument is only used to judge whether the conductor is live or not.

It is a necessary tool for everybody who works with electricity, ideal for testing AC cables, circuit breakers, wall sockets, junction boxes, fuses, etc.
All outer surfaces are non-conductive for safety
Touch the wire with the pen tip. If the red indicator lights up, it means voltage exist. Detects voltage without metallic contact.

VOLTAGE CURRENT PEN DETECTOR.

SAFETY IEC 61010

WARRANTY 1 YEARS.

ROLLER DISTANCE METER.

Easy to, accurate measurements for on-site Linear, Area and Volume estimates. Built-in functions automatically calculate and store Square Footage, Volume and more for up to nine different areas. Works in and converts in all U.S. and Metric units. Weighs just 3 lbs. – includes convenient kickstand, wrist strap and easy-to-understand User's Guide.

It helps you solve:

• Calculate and store Linear and Area measurements. Roll and label the "Length" and "Width" to find Area, or store and recall later.
• Stores multiple units of measurement.
• Works in and converts between Feet-Inches, Decimal Feet, Decimal Inches, Yards and Acres.
• Built-in user Memory for accumulating counts of measurements.

For:
Contractors, Estimators, Engineers, Landscapers, Paving Contractors, Fencing Specialists, Real Estate Pros, Utility Personnel, Surveyors, Police Work, Facility Engineers, Telecommunications Contractors

Dimensional Math and Conversions:

• Calculates and stores Linear distances, square Area, and cubic Volume measurements. Roll and label the "Length" and "Width" to find an Area or store and recall later.
• Stores multiple units of measurement.
• Works in and converts between Feet-Inches, Decimal Feet, Decimal Inches, Yards, Meters and Acres.

Dedicated Functions:

• Built-in user memory for accumulating counts of measurements.
• Large, easy-to-read LCD displays measurements in Feet, Inches, Yards, Meters and Acres.
• Includes its own wheel radius for true wall-to-wall measuring.

Time Saving Utilities:

• AutoCount feature counts preset distance increments. Or, use push-button manual counter for parking spaces, lights, posts, etc.)
• Start/stop key prevents accidental measurements.
• Backlight LCD display.
• Auto Shut-off extends battery life.
• Built-in kickstand

Includes:

• Easy-to-Understand User's Guide
• Long-Life Batteries
• Full One-Year Limited Warranty

Tech Specs

Length (extended):
45 Inches (1143mm) with wheel

Length (contracted):
29 Inches (737mm) with wheel

Wheel Size:
1 Meter (39-3/8") circumference; 12-9/16" (.319 meter) diameter

Maximum Speed:
8 mph (13 Km/h)

Measuring Range:
0 to 999,999.9 Feet/Yard/Meters

Weight:
3 lbs. (1.36 kg)

Wheel Accuracy:
99.9%

Wheel Composition:
High-impact plastic; TPE rubber tire

Power:
Four AAA Duracell batteries

Display Type:
7digit LCD with full annunciators (up to 999,999.9)

Accuracy:
10 Digit Internal Math accuracy; 99.5% measuring accuracy

Operating Temperature:
14°F to 140° F (-10° C to 60° C)

Calculates and stores Linear distances, square Area, and cubic Volume measurements. Roll and label the "Length" and "Width" to find an Area or store and recall later.

• Length (extended): 45 Inches (1143mm) with wheel
• Length (contracted):29 Inches (737mm) with wheel
• Wheel Size: 1 Meter (39-3/8") circumference; 12-9/16" (.319 meter) diameter
• Maximum Speed: 8 mph (13 Km/h)
• Measuring Range: 0 to 999,999.9 Feet/Yard/Meters
• Weight: 3 lbs. (1.36 kg)
• Wheel Accuracy: 99.9%
• From USA.

                                           HUMIDITY/TEMPERATURE METER.

  • Dual LCD for simultaneous display of Relative Humidity and Temperature

  • Temperature is °C/°F switchable

 • Built-in Humidity and Temperature sensors for convenient operation

 • Pocket size for quick and reliable measurements at any location

 • Max/Min memory functions for display of highest and lowest readings for both Temperature & Relative Humidity

• "Clear" function key to erase stored Max/Min readings to record new values

 • Complete with pocket clip and one LR44 button battery.

SLING PSYCHOMETER.

Product Description

Ideal for measurement of comfort conditions in air conditioned environments, hospital operating rooms, storage areas and laboratories;as well as testing in industrial atmospheres where high or low humidity may be critical in manufacturing processes.

• Accurate to within ±5% RH

• Red spirit filled thermometers

• Designed for portability (7.5" long x 1" diameter)

• Slide rule construction quickly converts temperature to relative humidity

• Built-in water reservoir holds sufficient water for several hours of testing

• Thin bulb design gives fast thermal response

• Thermometers constructed of shock-resistant glass; stems have deep-etched numerals and 1" scale division
  for easy reading

                                                                                     TEST KIT

                                                                               . water analysis

Color Test Kit, Model CO-1

Product #: 223400 USD Price: Contact Hach Available The Hach color test reads the apparent color created by dissolved substances that can indicate industrial, agricultural, or natural pollution. Color disc kit reads apparent color created by dissolved substances that can indicate industrial, agricultural, or natural pollution Dual range measurement Specifications

Case Style: D

Method Name: Color disc/ APHA Platinum – Cobalt Standard

Model: CO-1

Number of tests: No Limit No Limit

Parameter: Color - as color units

Platform : Color Disc

Range 2: 0 to 500 units

Ship Wt. (lbs): 1.0

Smallest Increment: 5 units 25

 What's in the box? Includes color disc, comparator box and tubes, instructions and carrying case.

Chlorine (Free & Total) Color Disc Test Kit,

Model CN-66 Product #: 223101 USD Price: Contact Hach Available This color disc test kit uses powder DPD reagent that reacts with chlorine more quickly than tablet-form DPD, giving more accurate results. Powder DPD also has a considerable advantage over orthotolidine, a hazardous substance sometimes used as a free and total chlorine test reagent. Hach Chlorine Test Kits are manufactured by Hach to ensure compliance with stringent quality control standards. Kit contains 100 tests. *This product has not been evaluated to test for chlorine and chloramines in medical applications in the United States. Quickly and accurately measures free and total chlorine levels in the field or in the lab Simple and fast color disc method

 Specifications

Case Style: B

Method Name: Color disc/DPD

Model: CN-66

Number of tests: 50 F, 50 T

Parameter: Chlorine, low range - as free & total Cl2

Platform : Color Disc

Range: 0 to 3.4 mg/L Cl₂ Cl₂

Ship Wt. (lbs): 1

Smallest Increment: 0.1

 What's in the box? Includes two reagents, color disc, color comparator box, tube, instruction sheet, and carrying case.

pH Test Kit, 4.0 - 10.0 pH,

Model 17N Product #: 147011 SGD Price: Contact Hach Available Hazardous Items with this mark may be considered hazardous under some shipping conditions. If necessary, we will change your selected shipping method to accomodate these items. Most natural waters range from pH 4 to pH 9, but commonly are above pH 7 because of carbonates and bicarbonates (alkalinity). The pH of water used in industry, boiler feed water, and swimming pools usually is kept within a narrow range. Simply add indicator to the sample and compare the color to the spots on the color disc to measure pH. A wide range kit applicable to a variety of samples A great option for fast, reliable readings Specifications

Case Style: B

Method Name: Color disc/ Wide range indicator

Model: 17N

Number of tests: 300

 Parameter: pH, wide range

Platform : Color Disc

Ship Wt. (lbs): 1.0

Smallest Increment: 0.5 pH

What's in the box? Includes indicator reagent, color disc, comparator box, two viewing tubes, instructions and carrying case.

                                          Digital Laser Temperature Gun IR                                                Infrared Thermometer

Features:

Temperature Range: -50°C~330°C(-58 °F ~ 626°F),

 true temperature range, no exaggeration like some othersAccuracy: ±1.5°C/ ±1.5

Resolution: 0.1°C or 0.1°

Distance Spot Ratio: 12:

Emissivity: 0.95(fixedResponse

Time Wavelength: 500ms (8-14)u<div>8

Specifications:

Color: Black

Material: 600D+PU+PVC

Dimension: 16.3 * 10.2 * 2.5cm

Weight: 145g

Response Time Wavelength: 500ms (8-14)um

Repeatability: ±1% or ±1°C

Resolution: 0.1 °C or 0.1°F<div>

2 x 1.5V AAA Batteries

required°C/°F

Selection --------------------------- OK

Data Hold Function ---------------------- OK

Laser Target Pointer Selection ---------- OK

Backlight Display Selection ------------- OK

Auto Power Shut Off --------------------- OK

Low Battery Indication ------------------ OK

                                                                                            FLUKE METER

Fluke 324 40/400A AC, 600V AC/DC True-RMS Clamp Meter with Temperature, & Capacitance Measurements

The Fluke 324 40/400A AC, 600V AC/DC True-RMS Clamp Meter with Temperature, & Capacitance Measurements are designed to perform in the toughest environments and provide noise-free, reliable results users can trust to confidently diagnose problems. True-rms measurements and optimized ergonomics make the Fluke 324 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians. Much like the other Fluke 320 Series Clamp meters, the Fluke 324 Clamp Meters measure AC and DC voltage, AC Current, resistance, and continuity. The Fluke 325 can also measure capacitance and contact temperature.

Specifications AC Current Range 40.0/400.0A Accuracy 1.5% ± 5 digits (45 Hz to 400 Hz) Note: Add 2% for position sensitivity AC Voltage Range 600.0V Accuracy 1% ± 5 digits DC Voltage Range 600.0V Accuracy 1% ± 5 digits Resistance Range 400.0Ω/4000Ω Accuracy 1% ± 5 digits Continuity ≤ 30 Ω Capacitance 100.0 µF to 1000 µF AC Response True-RMS Backlight Yes Data Hold Yes Contact Temperature -10.0°C to 400.0°C (14.0°F to 752.0°F) Physical Specifications Size 8.1 x 2.95 x 1.34 inches (207 x 75 x 34mm) Max wire diameter 30 mm (600 MCM) Weight 208g Contact Rating CAT III 600V CAT IV 300 V



                                                                     LASER DISTANCE

• -High accuracy and wide measuring range up to 80m
• -Quick measurement of distance, area and volume with one button operation
• -Automatic calculation of area and volume
• -Indirect measurement by Pythagorean theorem
• -Min/Max distance tracking (display value)
• -Easy addition/subtraction of measurement
• -Set up front / rear benchmark
• -Switchable among metre (m), inch (in), feet (ft)

Product details of Cross-line 80m / 262ft Mini Digital Laser Distance Meter Range Finder Measure Diastimeter

Pythagorean proposition measurement function: Full Mode
Add and subtract measurement function: YES
Min/Max value: YES
Data store/ recall function: YES
Max storage: 80m-99 units
Automatic backlight: YES
Protection Classification: IP54
Buttons/Keys sound: YES
Laser level: II
Laser type: 635nm, <1mW
Cut off the laser automatically: 20s
Auto Power -Off: 150s
Maximum Battery Life: 4000 times
Storage temperature: -20~60°C / -4~140°F
Working temperature: 0~40°C / 32~104°F
Storage humidity: RH 85%
Battery: 1.5V 3 * AAA alkaline batteries
Product size: Approx. 30*55*125mm

What's in the box:

• • •

  • •

    •

    1 x Laser Distance Meter
  • 1 x Portable pouch
  • 1 x Hanging rope
  • 1 x User manual
  • 3 x AAA alkaline batteries

                   Rewin Distance Measuring Wheel 0-9999M ( Walking Measure )

Clear reading and accurate The humanized design , composite ergonomics Aluminium alloy adjustable handle , easy to use Outourcing elastic rubber surface , moulding rubber prevent slippery gear.

Product details of Rewin Distance Measuring Wheel 0-9999M ( Walking Measure )

Rewin tools production , sales of products are the national standard of GB , GS stand production

Rewin tools Through the ISO9002 : 2000 international quality system authentication managem-ent operation

Rewin tools is using high carbon steel , chrome -vanadium steel , S2 , chromium-molybdenum steel that such advanced materials and green environmental protection material best many facture , ensure the quality of the products and the properties of the stability and reliability .

What's in the box:

• 1 X REWIN DISTANCE MEASURING WHEEL 0-9999M ( WALKING MEASURE )



                                                                                LUX METER.



 - According to JISC1609 : 1993 and CNS 5119 general A class specifications.

- Spectral response close to CIE luminous spectral efficiency.
- Measuring the intensities of illumination displays in unit of Lux or Foot-candle.
- Silicon photo diode and filter.
- Measuring light source include all visible light source.
- Cosine angular corrected.
- Auto power off and disable function.
- Data hold, Max/Min/AVG hold.
- Real Zero function.
- Auto ranging.

Light Source Selecting	Tungsten/Daylight, Fluorescent, 0~9 select rating
Measuring range	40,400,4,000,40,000,400,000Lux
	40,400,4,000,40,000Foot-candel
Accuracy	±3%±3Lux(0~500Lux), ±3%(up 501 Lux) (Calibrated to standard incandescent lamp 2856∘K)
	±8% (other visible light source)
Dimension	133mm x48mm x23mm (LxWxH)
Power	2 batteries 1.5V AAA
Weight (including battery)	80g

                                                                                                         MULTIMETER.



Pen DMM with Non-Contact Voltage Detector Features: • Large 2000 count high contrast LCD display • Non-Contact Voltage detection with visible and audible alarm • Autoranging with Data Hold, Range Hold, and Maximum Hold features • Functions include AC/DC Voltage, Resistance, Continuity and Diode Test • Auto Power off to conserve battery life • Overload and low battery indication • Meets IEC1010-1; CAT III-600V • Complete with test lead with alligator clips, two 1.5V AAA batteries, and carrying case Applications: • AC live circuit detection • Field Service troubleshooting tool for AC/DC circuits • R & D and circuit board troubleshooting • Digital circuitry testing Built-in Non-Contact Voltage Detector automatically detects a live wire when the red LED is lit.

                                                   TACHOMETER

Photo Range	10 to 99,999 rpm
Contact Range	0.5 to 19,999 rpm
Resolution	0.1 rpm ≤ 999.9 rpm; 1 rpm > 1000 rpm
Surface Speed Range	0.05 to 1,999.9 mpm/ 0.2 to 6560 fpm
Resolution	0.01mpm ≤ 99.99 mpm; 0.1 mpm > 100 mpm/0.1 fpm ≤ 999.9 fpm; 1 fpm >1000 fpm
Accuracy	±(0.5% + 1 digit)
Sampling Rate	Photo: 1 sec. over 60 rpm;
Contact	1 sec. over 6 rpm
Detection Distance	50 to 2,000mm
Laser	Class 2 red laser diode, 645nm wavelength
Power Supply	4 x 1.5V "AA" batteries
Dimensions	8.5 x 2.6 x 1.5" (215 x 65 x 38mm)
Weight	0.66 lb (300g)

Product Description

Varsatile contact and non-contact operation, as well as laser slighting, in one compact unit.

• Photo tachometer and contact tachometer in one precision instrument
• Laser light for improved accuracy at a greater distance in photo mode
• Surface speed measurements in fpm or mpm
• Retains Min/Max and last reading for later recall
• Automatic reverse display direction depending on which measurement mode you are in
• Highly visible LCD readout
• Includes 3 contact adapters (2 cones, 1 funnel), surface speed wheel, reflective tape and hard carrying case

                                                          THERMOMETER IR INFRARED

Infrared Thermometer (-50 to 1600 deg C)

Type K thermocouple	-50 oC to 1370 oC (-58 oF to -2498 oF)
Emissivity	Adjustable 01. ~ 1.0
Measuring Range	-50 oC to 1600 oC or -58 oF to 2912 oF
Resolution	0.1 - 1 oC/oF
Accuracy	+/- 1% - 2.5% of reading plus +/- 1 oC to 2.5 oCor +/- 1.8 oFto 4.5 oF(whichever is greater)
Battery	9V (INCLUDED)
Dimension / Wt	120 x56 x220mm / 290g

Product Description

Digital non-contact infrared thermometer with built-in dual laser pointers and back-light LCD display.
This top-of-the-line device has a super narrow 50:1 distance to spot ratio and a wide range of
-58 ^oF to 2912 ^oF (-50 ^oC to 1600 ^oC).  Forget the old analog devices, this newly designed digital light
weight device gives you long lasting power with accurate measurement from safe distance.
The build-in dual laser pointers help you aim better at the object for an accurate result.
The back light LCD screen allows you to read easily in the dark.

The integrated USB interface and Windows software allow the measurement to be uploaded to your PC
with ease.  It also comes with type K thermocouple and a heavy duty carrying case to protect your
device when working in the field.

• Non-contact Infra-Red thermometer with laser pointer measures to 1600^oC / 2912^oF
• Easy to use for measuring temperature of hot or moving objects from a safe distance
• Super narrow 50:1 field of view (measure 1" target at 50" distance)
• Built-in dual laser pointers to improve aim
• Fast sampling time (less than 150ms)
•  ^oC / ^oF switchable and Auto Power Off
• Adjustable emissivity (0.1 ~ 1.0)
• Auto-Hold after releasing the trigger button
• Max, Min, Dif, Avg record
• High and low alarm



                                                                       PRESSURE METER.

PS115: Differential Pressure Manometer (15psi)

11 Measurement Units, High Resolution

Features:

• Differential pressure manometer with ±15psi measurement range
• 11 measurement units
• Manually store/recall 99 readings
• Max/Min recording and Relative time stamp
• Large LCD display with backlighting
• Data Hold and Auto power off with disable
• Zero function for offset correction or measurement
• Complete with six AAA batteries, two connection hoses and hard carrying case

Specifications General Specifications

Display Backlit LCD

Status indicators Multifunction display icons and low battery indicator

Ranges Model PS101: 1psi Model PS106: 6psi Model PS115: 15 psi

Measurement Units bar, mbar, psi, Kg/cm2 , mm Hg, inch Hg, meters of H2O, inches of H2O, hPA, kPA, and ozin2 . Accuracy (Meter) ± (0.3% full scale) at ambient temperature 25°C (± 73°F)

Repeatability ± (0.2% to 0.5% full scale)

Linearity/Hysteresis ± (0.29% to 1.0% full scale)

Combined accuracy ± (1.0% full scale)

Data Hold Freezes the displayed reading

Max-Min Record/Recall Record and Recall the Maximum and Minimum readings

Internal reading memory 99-reading internal memory storage with instant recall

Display update rate 0.5 seconds (approx.)

Hose dimensions 4mm lug (orange hose 500mm length)

Operating Temperature 0 to 50°C (32 to 122°F)

Operating/Storage Humidity 90% R.H. max.

Storage Temperature -20 to 50°C (-4 to 122°F)

Auto Power OFF After 20 minutes of inactivity (can be disabled)

Power Supply Six (6) 1.5 VDC ‘AAA’ batteries

Weight 200g (7.0 oz.) with batteries

Dimensions 169 x 78.3 x 34.4mm (6.7 x 3.1 x 1.4”)

                                                           STOPWATCH.

Stopwatch/Clock with Backlit Display.

365515: Stopwatch/Clock with Backlit Display

Digital LCD Stopwatch plus Calendar and Alarm

Features:

• 1/100th second resolution for 30 minutes
• Timing capacity: 23hrs, 59mins, and 59.99secs; Basic accuracy: ±3 seconds/day
• Calendar displays day, month and date

.1/100th second resolution for 30 minutes

• 1 second resolution up to 24 hours • 12 or 24 hour clock format

• Timing capacity: 23hrs, 59mins, and 59.99secs; Basic accuracy: ±3 seconds/day

• Calendar displays day, month and date

• Programmable alarm and hourly chime setting

• Backlight turns off after 4 seconds

• Water resistant housing and neckstrap

• Dimensions: 2.3x2.8x0.5" (5x70x15mm); Weight: 2oz (50g)

• Complete with LR44 battery and 39" (1m) snap-away neckstrap



Extech EX570 12 Function True RMS Industrial MultiMeter with IR Thermometer

Product Description

Features:

• Built-in Non-contact InfraRed Thermometer with laser pointer
• True RMS CAT III-1000V, CAT IV-600V rated with 0.06% basic DCV accuracy
• Heavy duty Double molded, water resistant package
• Large backlit 40,000 count LCD with 40-segment bargraph
• Memory for storage and recall of three measurements
• Type K thermocouple contact temperature measurements
• Features include HOLD, RELATIVE and PEAK HOLD
• 1000V input protection on all functions
• Min, Max and Average recording, Auto power off with disable feature
• Capacitance, Frequency, Diode and Continuity functions
• Complete with double molded test leads, magnetic hanging strap, Type K bead wire temperature probe, case, and 9V battery

 Specifications

 Display Counts 40,000

count Basic Accuracy 0.06%

DC/AC Voltage 0.01mV to 1000V

DC/AC Current 0.01µA to 20A

Resistance 0.01Ω to 40MΩ

Capacitance 0.001nF to 10,000µF

Frequency 0.0001Hz to 40MHz

Temperature (Type K) -50 to 1382°F (-45 to 750°C)

IR Temperature -22 to 1022°F (-30 to 550°C)

Field of View 30:1 ratio

Duty Cycle 0.01 to 99.99%

DIODE (2.8V)/Continuity Yes

ETL/CE approved Yes

Warranty 3 years

Dimensions 7.25x3.25x2.25" (184x83x57mm)

Weight 12.3oz (349g)

Fluke 700G series Precision Pressure Gauges.

Easy to use, rugged and reliable construction with precision pressure measurement from 15 psi/ 1 bar to 10,000 psi/690 bar and 0.05% accuracy.

Product Description

With best-in-class accuracy and measurements, the Fluke 700G series precision pressure test gauges were designed to handle all of your pressure calibration needs. The 700G series pressure test gauges are rugged and easy to use, with twenty three models ranging from ±10 inH2O/20 mbar to 10,000 psi/690 bar including absolute pressure ranges. When combined with the Fluke 700PTPK or 700HTPK you’ve got a complete pressure testing solution for up to 600 psi (40 bar) with the PTP-1 pneumatic pump and up to 10,000 psi (690 bar) with the HTP-2.

Fluke 725 Multifunction Process Calibrator.

Measure and source mA, volts, temperature (RTDs and thermocouples), frequency, ohms, and pressure, using optional pressure modules.

Features:

• Measure volts, mA, RTDs, thermocouples, frequency, and ohms
• Source/simulate volts, mA, RTDs, thermocouples, frequency, and ohms
• Measure and source pressure using Fluke 700P series pressure modules
• Dual display shows input and output
• Built in 24V loop power supply
• Programmable step and ramp for automated testing

General specifications

Maximum voltage: 30V

Storage temperature: -40°C to 71°C

Operating temperature: 10°C to 55°C

Relative humidity: 95% (10°C to 35°C); 75% (30°C to 40°C); 45% (40°C to 50°C); 35% (50°C to 55°C)

Shock: 30g, 11ms, half-sine shock (or 1meter drop test)

Vibration: Random, 2g, 5-500 Hz

Safety: CSA C22.2 No. 1010.1:1992 EMC: EN50082-1:1992 and EN55022:1994

Class B Size/weight: 96 x 200 x 47 mm (3.8 x 7.9 x 1.9 inches) 650g (23 oz)

Battery: Four AA alkaline batteries.

Battery life: 25 hours typical

Warranty: Three years

         Kyoritsu Pen Type Digital Multimeter-1030

Specifications:

Compact in Size, Light in Weight and Simple in Use.

• Double moulding provides comfortable and good feeling in hand.
• Penlight illuminates brightly the point to be measured, even in dark place.
• Backlight LCD is highly visible, even in darkness.
• Unique wrapping mechanism for test lead in the rear side compartment.
• Unique protection mechanism for the test prod for safety.
• All ranges including Ohm range are protected against overload voltage of 600V.

Kyoritsu 6315 Power Meter

Power Quality Analyzer

• Simultaneous Power & Power quality measurements Power/ Harmonics/ Waveform/ Power quality are recorded at all CHs. (Voltage: 3ch, Current 4ch) • Helpful support functions Quick Start Guide, Wiring check and Sensor detection for easy and reliable measurement • Measurement with high accuracy Guaranteed accuracy: ±0.3%rdg (energy), ±0.2%rdg (voltage/ current) Complies with the International Standard IEC 61000-4-30 Class S and the European Standard EN50160 • Remote monitoring on PC and Android device Remote checking of measurement in real-time is possible via Bluetooth communication. Recorded data can be saved in the supplied SD card. EN50160 report can be generated after survey by PC software. • Various Clamp Current Sensors Various types of clamp and flexible sensors are available: from 1000mA Range up to 3000A Range and Earth leakage measurements • Energy consumption check on site Trend and demand graphs for easy recognition. TFT color display with high resolution. • IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V Free Android software "KEW smart 6315" is available on "Google Play Store" (*) Supporting Android ver. 2.2 - 4.4 WVGA (800 × 480) resolution or higher

Wiring connections 1P2W, 1P3W, 3P3W, 3P4W Measurements and parameters Voltage, Current, Frequency, Active power, Reactive power, Apparent power, Active energy, Reactive energy, Apparent energy, Power factor (cos θ), Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption, Transients/Over voltage, Inrush current, Unbalance rate), Capacitance calculation for PF correction unit, Flicker Voltage (RMS) Range 600.0 / 1000V Accuracy ±0.2%rdg±0.2%f.s. (sine wave, 40~70Hz) Allowable input 1~120% of each range (rms). 200% of each range (peak) Display range 0.15~130% of each range Crest factor 3 or less Sampling speed of Voltage transient 24µs Current (RMS) Range 8128 ( 50A  type ) : 5 / 50A / AUTO 8127 ( 100A  type ) : 10 / 100A / AUTO 8126 ( 200A  type ) : 20 / 200A / AUTO 8125 ( 500A  type ) : 50 / 500A / AUTO 8124/8130 ( 1000A  type ) : 100 / 1000A / AUTO 8146/8147/8148 ( 10A  type ) : 1 / 10A / AUTO 8129 ( 3000A  type ) : 300 / 1000 / 3000A Accuracy ±0.2%rdg±0.2%f.s. + accuracy of clamp sensor (sine wave, 40~70Hz) Allowable input 1~110% of each range (rms). 200% of each range (peak) Display range 0.15~130% of each range Crest factor 3 or less Active power Accuracy ±0.3%rdg±0.2%f.s. + accuracy of clamp sensor (power factor 1, sine wave, 40~70Hz) Influence of power factor ±1.0%rdg (reading at power factor 0.5 against power factor 1) Frequency meter range 40~70Hz Power supply (AC Line) AC100~240V / 50~60Hz / 7VA max Power supply (DC battery) Alcaline size AA battery LR6 or Ni-MH (HR-15-51) × 6 Battery life approx. 3h (LR6, Backlight OFF) Internal memory FLASH memory (4MB) PC card interface SD card (2GB) PC communication interface USB Ver2.0, Bluetooth Ver2.1 + EDR Class2 Display 320 × 240 (RGB) Pixel, 3.5inch color TFT display Display update period 1 sec Temperature and humidity range 23±5ºC, less than 85% RH (without condensation) Operating temperature and humidity range 0~+45ºC, less than 85% RH (without condensation) Storage temperature and humidity range -20~+60ºC, less than 85% RH (without condensation) Applicable standards IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V Pollution degree 2 IEC 61010-2-030, IEC 61010-031, IEC 61326, EN 50160 IEC 61000-4-30 Class S, IEC 61000-4-15, IEC 61000-4-7 Dimension 175(L) × 120(W) × 68(D) mm Weight Approx. 900g Included accessories 7141B (Voltage test lead) 7170 (Power cord) 7219 (USB cable) 8326-02 (SD card 2GB) 9125 (Carrying case for KEW 6315) 9135 (Carrying case for KEW 6315-03) Input terminal plate × 6, KEW Windows for KEW 6315 (software), Calibration Certificate, Quick manual, Alkaline size AA battery (LR6) × 6 Optional accessories 8124, 8125, 8126, 8127, 8128 (Load current clamp sensor) 8129, 8130 (Flexible clamp sensor) 8146, 8147, 8148 (Leakage and Load current clamp sensor) 8312 (Power supply adaptor) 9132 (Magnetci carrying case)

Fluke LVD2 Volt Light

Model NameDescriptionT+PROT+ PRO ELECTRICAL TESTER
Includes:

User manual Test lead wrap TP2 test probes

Fluke 1AC IIVoltAlert Voltage Detector

Voltbeat™ technology and continuous self-test so you always know it's working Upon detection of voltage, tip glows and beeper sounds CAT IV 1000 V for added protection Expanded range: 90 V to 1000 V ac

Features :

Non-contact AC voltage detector and LED flashlight combined into one easy to use pen-style design. The LVD2 is a CAT IV 600 V rated non-contact detector that is suitable for commercial and industrial applications. The LVD2 includes dual sensitivity turning blue 1 to 5 (2.54 cm to 12.7 cm) from the source and red when at the source. Dual Sensitivity LED light with 100,000 hour life Detects from 90 to 600 V AC Rated to CAT IV 600 V Dual Levels of Detection Blue indicates proximity to AC Voltage source Red indicates you’re at the source Operating temperature 0 deg C to 50 deg C Ultra-Bright White LED 100,000 hr bulb AAA battery included

Safer than traditional solenoid testers and fully compliant with NFPA 70E* The T+PRO and T+ Electrical Testers offer all the functionality that electricians look for in volt meters and voltage and continuity testers: Both have three ways to detect ac/dc voltage: light, sound, and vibration Both offer the added functionality of a GFCI trip and continuity beeper, plus the convenience of a built-in flashlight The T+PRO Electrical Tester comes with a rotary field indicator for troubleshooting three-phase systems, resistance measurement to 9.99 KOhms, as well as a backlit LCD display for easier viewing Safer than traditional solenoid testers: Solid-state tester design CAT IV 600 V, CAT III 1000 V rated Complies with NFPA 70E* The ruggedness and reliability that customers have come to expect from Fluke * When used properly per Article 110.9 Use of Equipment (A) Test Instruments and Equipment.
